CHAPTER 11

Domains & TLS

Your site is reachable the moment it is deployed — over the automatic name, with a certificate — and you can attach your own domains. The platform checks that a name really leads back to it before asking a CA for a certificate.

Two kinds of domain#

auto custom
Name <slug>.<alias>.<base_domain> anything you add, for example www.mysite.org
Created with the project with add custom domain
Removable no (it goes with the project) remove
Pre-check button no (it runs on its own) retry pre-check

A name belongs to exactly one project

A hostname can be attached to one project, platform-wide. Names are stored lower-cased and trimmed, so Shop.Example.com and shop.example.com are the same name. Adding a name that any project already holds — yours or someone else's — is refused with 409.

Adding a custom domain#

  1. Point DNS at the platform. Create an A record for the name that resolves to the platform's public ingress address (your administrator can tell you which).
  2. Add the domain. On the project's Domains tab type the name into custom.example.com and press add custom domain — or call add_domain / POST /projects/{id}/domains.
  3. Watch the pre-check. It runs immediately. When it shows passed the route is written and a certificate is requested.
  4. Fix and retry if needed. After changing DNS press retry pre-check.
hosting.example.com/projects/7
Domains

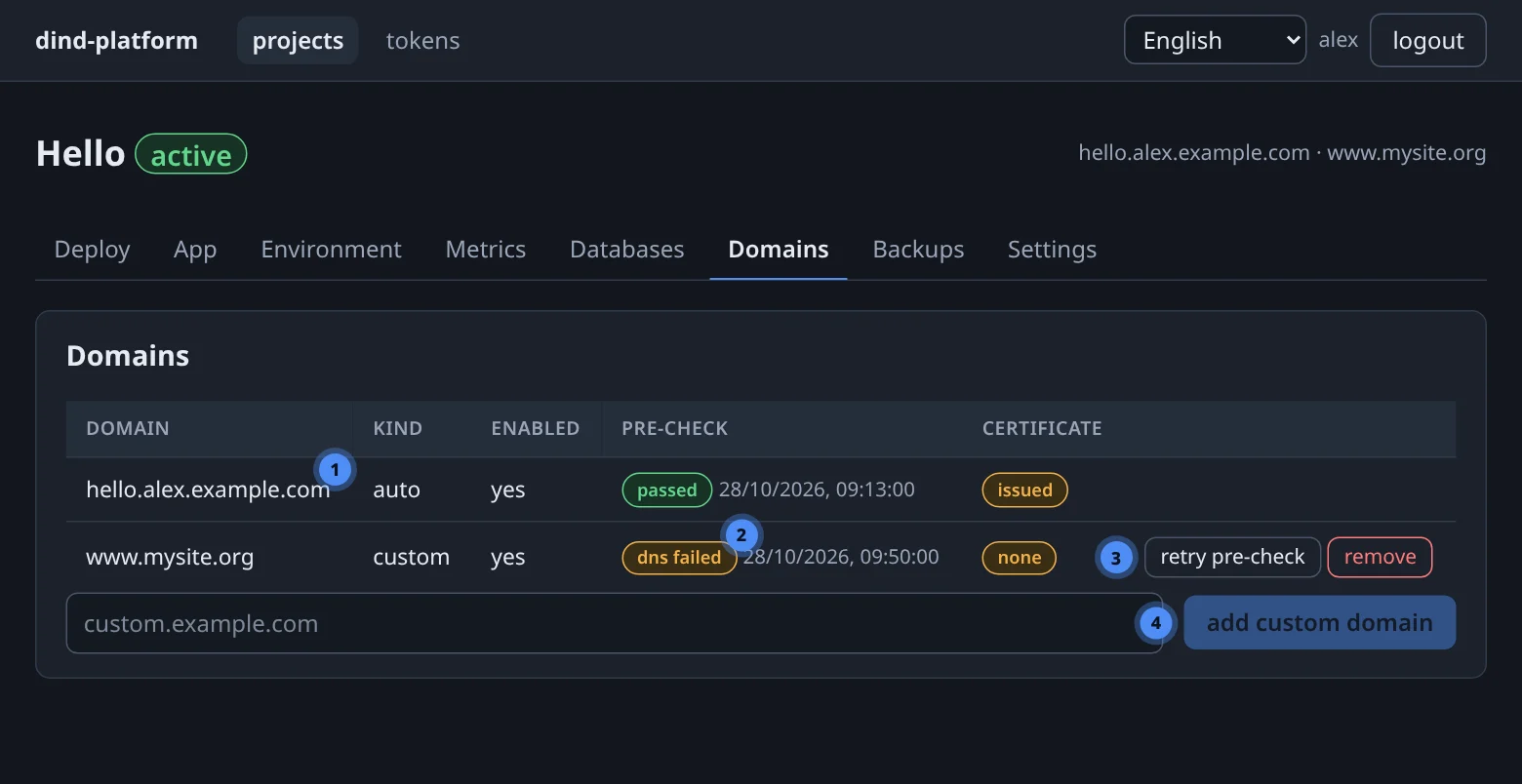

The Domains tab. (1) the automatic domain, (2) a custom domain whose DNS is not right yet, (3) retry once it is, (4) add another.

The pre-check#

Before any certificate is requested, the platform proves that the name leads back to itself. A wrong DNS record or a lookalike in front of the platform can therefore never cost you an ACME rate limit.

ManagementDNSTraefik (the LB)ACME CAresolve A/AAAA of the domainmust resolve — in prod it must equal lb_public_ipIP address(es)GET http://domain/.well-known/platform/precheckleaves via host egress → public IP → ingress → :80 → Traefik200 {“platform_id”: …}the marker route points back at management itselfplatform_id equals ours? → pre-check passedonly then the TLS route file is writtenwrite <project>--<hash>.yaml (tls on)Traefik hot-reloads the file providerACME HTTP-01 challengecertificate issued, renewed automatically123456
The pre-check and certificate sequence. Steps 1–4 are the pre-check; 5–6 happen only when it passed.
  1. DNS. The name must resolve. If the administrator has set the platform's public address (lb_public_ip), the record must equal it; if not, "resolves" is enough.
  2. Routing. The platform requests http://<domain>/.well-known/platform/precheck through the real path — host egress, your public address, the ingress, Traefik. The answer must carry the platform's own platform_id.

Only then does the route file appear and TLS get enabled.

States#

pre-check statuspendingjust addedpassedDNS and marker both OKdns_failedno A record, or wrong IProuting_failedmarker not reachedfix DNS or the ingress, then “retry pre-check”certificate statusnoneno route yetpendingchallenge runningissuedHTTPS serveserrorwatchdog retriesThe route file is written only after the pre-check passes.A watchdog (every 5 min) re-checks routes, certificatesand expiry (< 14 days), and re-runs failed pre-checks.
The two status columns of the Domains tab.
Pre-check Meaning What to do
pending added, not checked yet wait a few seconds
passed DNS and routing both OK nothing
dns_failed the name does not resolve, or not to the platform's address fix the A record, wait for DNS to propagate, retry
routing_failed DNS fine, but the marker did not come back check the ingress forwards ports 80 and 443 to the platform
Certificate Meaning
none no route yet (pre-check not passed)
pending the CA challenge is running
issued HTTPS is served
error issuing failed; a watchdog retries and surfaces the reason

A watchdog runs every five minutes: it verifies the route file and the router, checks that certificates are present and not expiring within 14 days, and re-runs failed pre-checks. Renewal itself is Traefik's job and automatic.

Certificates: dev or production#

The platform runs in one of two TLS modes, chosen by an administrator:

  • dev — a local certificate authority signs a leaf certificate per domain. Browsers warn until the CA (data/platform/traefik/certs/dev/ca.crt) is imported; DNS is simulated, the routing check is real. It exists for testing without public DNS or CA rate limits.
  • prod — certificates from an ACME CA (Let's Encrypt by default; ZeroSSL, Google Public CA or a custom server are options) using the HTTP-01 challenge. This needs port 80 to reach the platform and a real contact email. Wildcard certificates are not issued.

See Administration for how an admin selects the CA.

HTTP and HTTPS#

Plain HTTP requests are redirected to HTTPS once a domain has a certificate. Your app only ever sees plain HTTP from the platform — see Running your app.

Debugging a failed pre-check

dns_failed → check with dig +short your.domain from outside. routing_failed → from the same place, curl -i http://your.domain/.well-known/platform/precheck should return 200 and a JSON body with platform_id.
